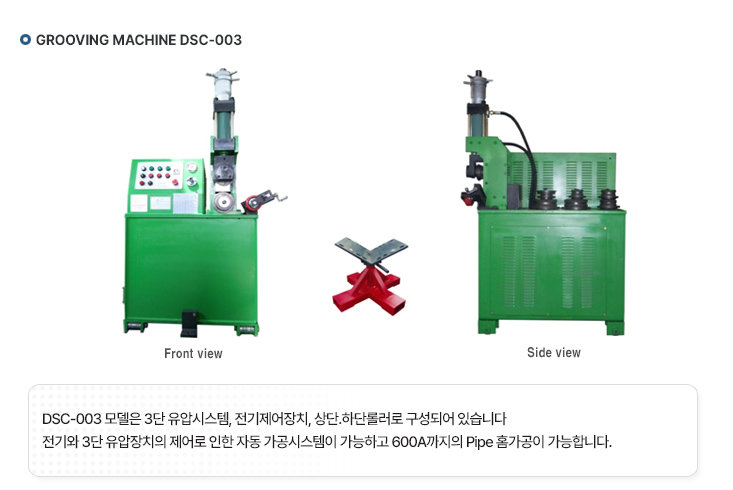

| Model Item |
DSC-003 |
| Main unit size |
1184(W) ⅹ 1038(L) ⅹ 1729(H) |
| Processing capacity |
Pipe 100A ~ 600A(4” ~ 24”) |
| Subject pipe type |
Steel pipe (schedule20-40), Stainless Steel pipe(schedule10-20), |
| Power supply |
220V~380V 60Hz |
| System |
HYD 150kg/cm2 |
| Tool rpm |
23rpm |
| Main press |
10ton |
| Main stroke |
100mm |
| Oil thank capacity |
60L |
| Tool motor |
5Hp 4p 1/60rpm 28.5 |
| Hydraulic motor |
3Hp 6p |
|
|
| |
 |
|
| Material Size |
SPP |
S/40 |
STS(S/10) |
| 8” ~ 12” |
○ |
○ |
○ |
| 14” ~ 16” |
○ |
○ |
○ |
| 18” ~ 20” |
○ |
○ |
○ |
| 22” ~ 24” |
○ |
○ |
○ |
|
|
|
| 기본적으로 SPP 롤러가 장착되어 있고 S/40, STS롤러는 작업시 별도 장착 |
|
| |
 |
| |
|
|
